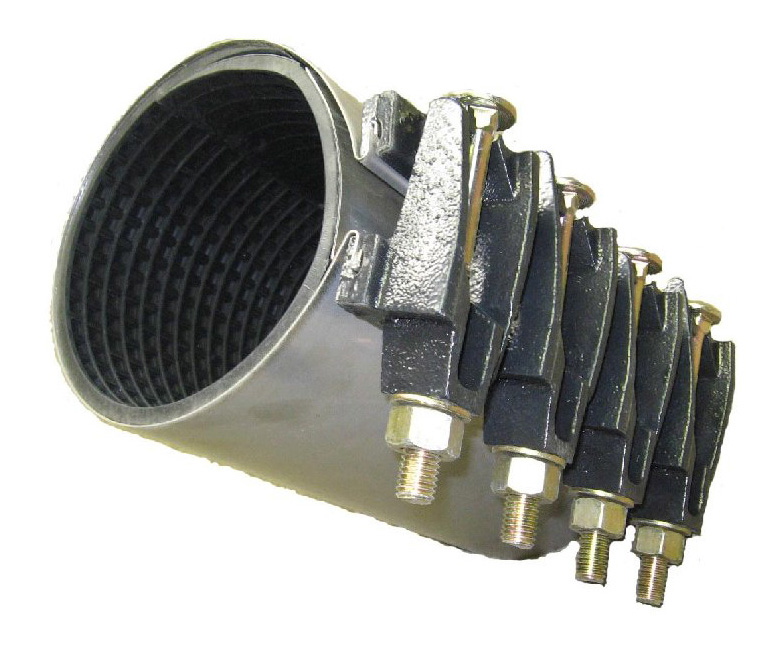

Full Circumference Pipe Repair Clamps Interlocking Lug

Non-corrosive ASTM A240 stainless steel band
Corrosion-resistant zinc dichromate-plated bolts, nuts and washers
NBR tapered and molded gaskets with raised-rib waffle design
ASTM A536 80-55-06 ductile iron lugs with equally supporting, interlocking fingers
Working temperature range: -40°F to 150°F
Combines the convenience of the bolt clip-in action of the Pipe Repair Clamp with the durability of the Single-Panel Complete Circle Pipe Repair Clamp

Description	Part Number
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 2'' X 8'' (2.05-2.24)	ILFC-2X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 2'' X 8'' (2.35-2.63)	ILFC-2X8-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 2'' X 12'' (2.05-2.24)	ILFC-2X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 2'' X 12'' (2.35-2.63)	ILFC-2X12-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 2.5'' X 8'' (2.70-3.00)	ILFC-2.5X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 2.5'' X 12'' (2.70-3.00)	ILFC-2.5X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 3'' X 8'' (2.97-3.25)	ILFC-3X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 3'' X 8'' (3.40-3.70)	ILFC-3X8-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 3'' X 10'' (3.40-3.70)	ILFC-3X10-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 3'' X 12'' (2.97-3.25)	ILFC-3X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 3'' X 12'' (3.40-3.70)	ILFC-3X12-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 3'' X 12'' (3.73-4.00)	ILFC-3X12-C
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 6'' (4.40-4.70)	ILFC-4X6-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 8'' (4.40-4.70)	ILFC-4X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 10'' (4.40-4.70)	ILFC-4X10-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 12'' (4.40-4.70)	ILFC-4X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 12'' (5.22-5.62)	ILFC-4X12-D
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 16'' (4.40-4.70)	ILFC-4X16-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 4'' X 10'' (4.40-4.70)	ILFC-4X20-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 8'' (5.95-6.35)	ILFC-6X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 8'' (6.50-6.90)	ILFC-6X8-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 10'' (6.50-6.90)	ILFC-6X10-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 12'' (5.95-6.35)	ILFC-6X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 12'' (6.50-6.90)	ILFC-6X12-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 12'' (6.84-7.24)	ILFC-6X12-C
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 12'' (7.45-7.85)	ILFC-6X12-E
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 6'' X 24'' (6.50-6.90)	ILFC-6X24-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 8" X 8" (7.95-8.35)	ILFC-8X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 8" X 8" (8.54-8.94)	ILFC-8X8-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 8'' X 10'' (8.54-8.94)	ILFC-8X10-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 8'' X 12'' (7.95-8.35)	ILFC-8X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 8'' X 12'' (8.54-8.94)	ILFC-8X12-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 10" X 8" (9.70-10.10)	ILFC-10X8-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 10'' X 10'' (10.64-11.04)	ILFC-10X10-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 10'' X 12'' (9.70-10.10)	ILFC-10X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 10'' X 12'' (10.64-11.04)	ILFC-10X12-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 8'' (12.62-13.02)	ILFC-12X8-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 12''..(12.62-13.02)	ILFC-12X12-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 12''..(13.10-13.50)	ILFC-12X12-C
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 12''..(13.40-13.80)	ILFC-12X12-D
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 18''..(12.62-13.02)	ILFC-12X18-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 24'' (12.62-13.02)	ILFC-12X24-B
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 24'' (13.10-13.50)	ILFC-12X24-C
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 12'' X 24'' (13.40-13.80)	ILFC-12X24-D
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 14" X 12" (13.92-14.20)	ILFC-14X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 14" X 20" (13.92-14.20)	ILFC-14X20-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 16" X 12" (15.95-16.10)	ILFC-16X12-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 16" X 16" (15.95-16.10)	ILFC-16X16-A
INTERLOCKING LUG FULL CIRCLE PIPE REPAIR CLAMP 16" X 20" (15.95-16.10)	ILFC-16X20-A

*6" Width available at same price as 8"

**Please denote clamp range when ordering. Example 2BX12 = 1187FC2X12B

*Other sizes available upon request, call for pricing
