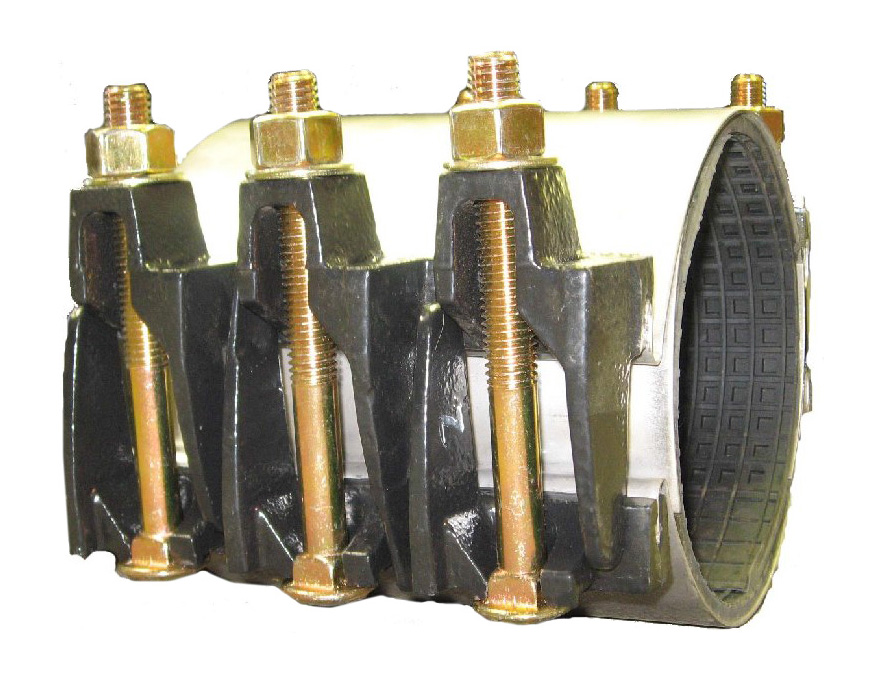

Full Circumference Pipe Repair Clamps Multi-Panel Interlocking Lug

Non-corrosive ASTM A240 stainless steel band
Corrosion-resistant zinc dichromate-plated bolts, nuts and washers
NBR tapered and molded gaskets with raised-rib waffle design
ASTM A536 80-55-06 ductile iron lugs with equally supporting, interlocking fingers
Working temperature range: -40°F to 150°F
Combines the convenience of the bolt clip-in action of the Pipe Repair Clamp with the durability of the Single-Panel Complete Circle Pipe Repair Clamp

Description	Part Number
INTERLOCKING LUG FULL CIRCLE MULTI PANEL PIPE REPAIR CLAMP 8'' X 12'' (8.60-8.90)	ILFCM-8X12-B
INTERLOCKING LUG FULL CIRCLE MULTI PANEL PIPE REPAIR CLAMP 10'' X 20'' (10.70-11.10)	ILFCM-10X20-C
INTERLOCKING LUG FULL CIRCLE MULTI PANEL PIPE REPAIR CLAMP 12'' X 12'' (12.40-12.80)	ILFCM-12X12-B
INTERLOCKING LUG FULL CIRCLE MULTI PANEL PIPE REPAIR CLAMP 16'' X 12'' (15.95-16.10)	ILFCM-16X12-A

**Other sizes available upon request, call for pricing
