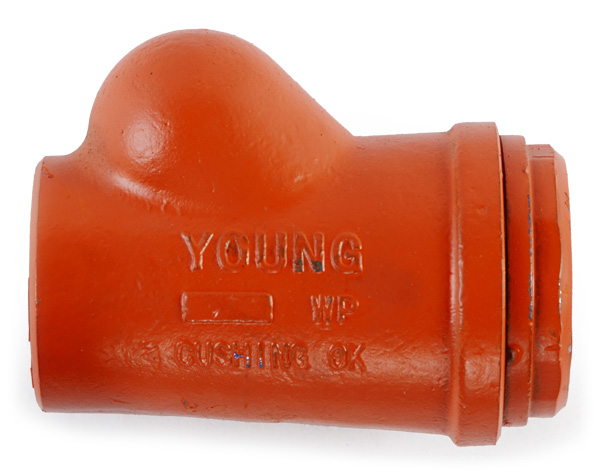

Ball Check Valves
- Designed to handle pulsating services and deliver longer life than a swing check valve in these applications
- Aluminum bronze, ductile iron and steel available in 1” and 2” valve sizes
- Comes standard with Stainless Steel/Viton Trim
- Custom molded seat and seal available in steel or stainless steel with Buna-N or Viton gasket
Steel
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 1440 | 4 1/2 | 5 | 1-SBC-1440 | |
| 1 | 2160 | 4 1/2 | 5 | 1-SBC-2160 | |
| 1 | 3000 | 4 1/2 | 5 | 1-SBC-3000 | |
| 2 | 1440 | 6 3/8 | 15 | 2-SBC-1440 | |
| 2 | 2160 | 6 3/8 | 15 | 2-SBC-2160 | |
| 2 | 3000 | 6 3/8 | 15 | 2-SBC-3000 | |
Aluminum Bronze
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 2000 | 4 1/2 | 5 | 1-ABBC-2000 | |
Ductile Iron
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 1000 | 4 1/2 | 5 | BCVD-1-1000 | |
| 1 | 1500 | 4 1/2 | 5 | BCVD-1-1500 | |
| 1 | 2000 | 4 1/2 | 5 | BCVD-1-2000 | |
| 2 | 1000 | 6 3/8 | 15 | BCVD-2-1000 | |
| 2 | 1500 | 6 3/8 | 15 | BCVD-2-1500 | |
| 2 | 2000 | 6 3/8 | 15 | BCVD-2-2000 | |
