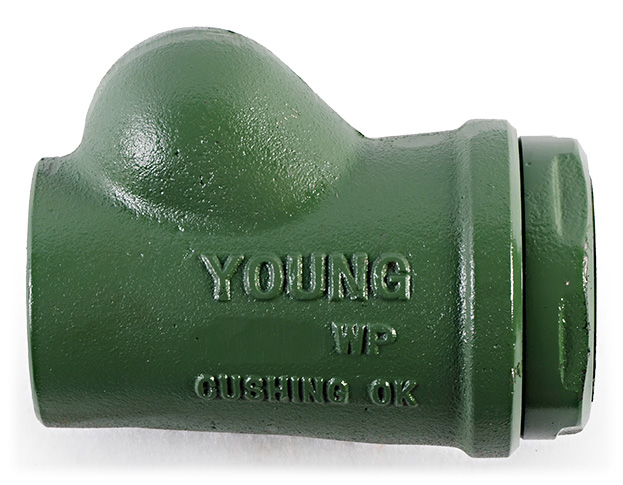

Ductile Iron
- Designed to handle pulsating services and deliver longer life than a swing check valve in these applications
- Available in 1” and 2” valve sizes
- Comes standard with Stainless Steel/Viton Trim
- Custom molded seat and seal available in steel or stainless steel with Buna-N or Viton gasket
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 1000 | 4 1/2 | 5 | BCVD-1-1000 | |
| 1 | 2000 | 4 1/2 | 5 | BCVD-1-2000 | |
| 2 | 1000 | 6 3/8 | 15 | BCVD-2-1000 | |
| 2 | 2000 | 6 3/8 | 15 | BCVD-2-2000 | |
