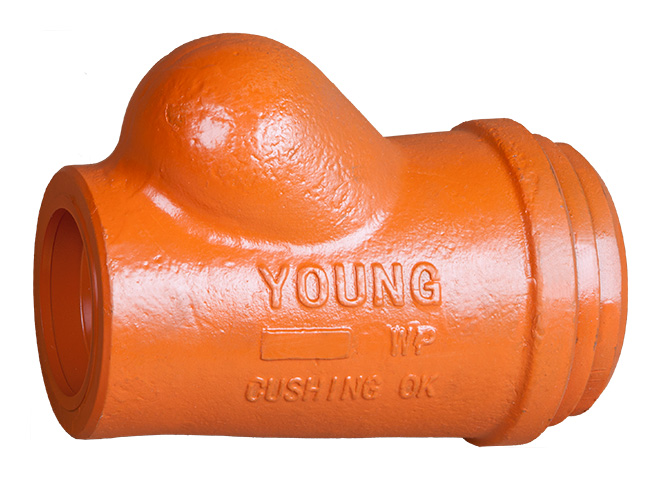

Steel
- Designed to handle pulsating services and deliver longer life than a swing check valve in these applications
- Available in 1” and 2” valve sizes
- Comes standard with Stainless Steel/Viton Trim
- Custom molded seat and seal available in steel or stainless steel with Buna-N or Viton gasket
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 2160 | 4 1/2 | 5 | BCVS-1-2160 | |
| 1 | 3000 | 4 1/2 | 5 | BCVS-1-3000 | |
| 1 | 5000 | 4 1/2 | 5 | BCVS-1-5000 | |
| 2 | 2160 | 6 3/8 | 15 | BCVS-2-2160 | |
| 2 | 3000 | 6 3/8 | 15 | BCVS-2-3000 | |
| 2 | 5000 | 6 3/8 | 15 | BCVS-2-5000 | |
