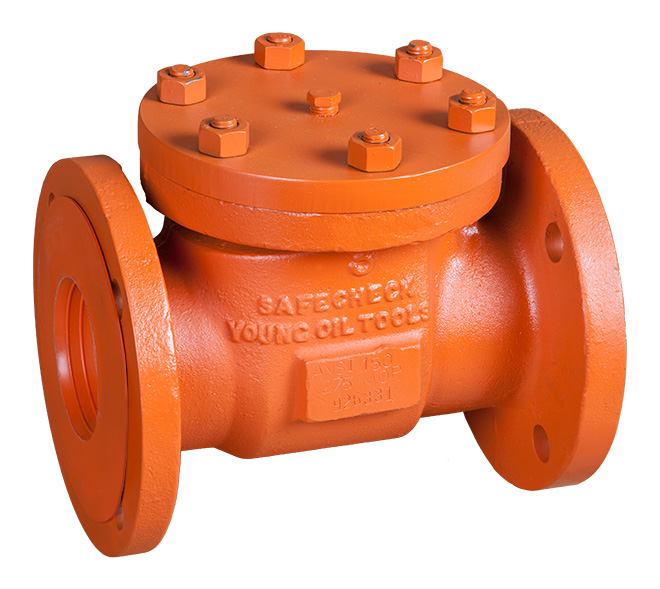

Flanged End Check Valves

Valve Size (in)	Class	Working Pressure	End to End Length (RF) (in)	End to End Length (RT) (in)	Weight (lb)	Part Number
2	150	275	8	N/A	33	FCVS-2-150
2	300	720	10 1/2	11 1/8	50	FCVS-2-300
2	600	1440	11 1/2	11 5/8	55	FCVS-2-600
3	150	275	9 1/2	N/A	45	FCVS-3-150
3	300	720	12 1/2	13 1/8	96	FCVS-3-300
3	600	1440	14	14 1/8	101	FCVS-3-600
3	600	1440				FCVS-3-600 Ring Joint
3	900	2160	15	15 1/8	119	FCVS-3-900
3	900	2160				FCVS-3-900 Ring Joint
3	1500	3600	18 1/2	18 5/8	149	FCVS-3-1500
3	1500	3600				FCVS-3-1500 Ring Joint
4	150	275	11 1/2	N/A	70	FCVS-4-150
4	150	275				FCVSS-4-150 (Stainless steel)
4	300	720	14	14 5/8	138	FCVS-4-300
4	600	1440	17	17 1/8	170	FCVS-4-600
4	1500	3600	21 1/2	21 5/8	225	FCVS-4-1500 Ring Joint
6	150	275	14	N/A	155	FCVS-6-150
6	300	720	17 1/2	18 1/8	185	FCVS-6-300
6	600	1440	22	22 1/8	335	FCVS-6-600
6	600	1440				FCVS-6-600 Ring Joint
8	150	275	19 1/2	N/A	280	FCVS-8-150
8	600	1440	26	26 1/8	525	FCVS-8-600
10	300	720	24 1/2	25 1/8	460	FCVS-10-300
12	150	275	27 1/2	N/A	650	FCVS-12-150
12	300	720	28	28 5/8	900	FCVS-12-300
