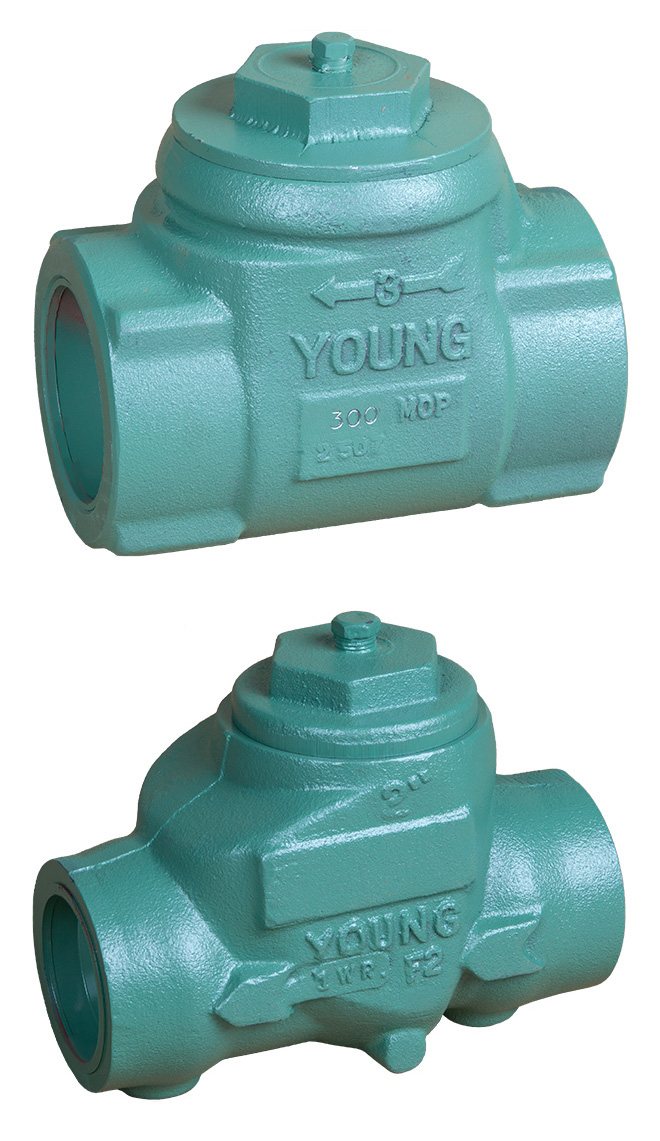

Ductile Nace
- Proven design with years of reliable service
- Very versatile for a variety of applications
- Full-opening design
- 1" through 4" sizes available
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 300 | 4 1/8 | 4 | CVD-1-300 | |
| 1 | 600 | 4 1/8 | 4 | CVD-1-600 | |
| 1 | 1000 | 4 1/8 | 4 | CVD-1-1000 | |
| 1 | 1500 | 4 1/8 | 4 | CVD-1-1500 | |
| 1 | 2000 | 4 1/8 | 4 | CVD-1-2000 | |
| 2 Short Body | 300 | 6 | 10 | CVD-2-300 | |
| 2 Short Body | 600 | 6 | 10 | CVD-2-600 | |
| 2 Short Body | 750 | 6 | 10 | CVD-2-750 | |
| 2 Short Body | 1000 | 6 | 10 | CVD-2-1000 | |
| 2 Short Body | 1500 | 6 | 10 | CVD-2-1500 | |
| 2 Short Body | 2000 | 6 | 10 | CVD-2-2000 | |
| 2 Long Body | 300 | 7 1/4 | 11 | CVD-2-300-L | |
| 2 Long Body | 600 | 7 1/4 | 11 | CVD-2-600-L | |
| 2 Long Body | 750 | 7 1/4 | 11 | CVD-2-750-L | |
| 2 Long Body | 1000 | 7 1/4 | 11 | CVD-2-1000-L | |
| 2 Long Body | 1500 | 7 1/4 | 11 | CVD-2-1500-L | |
| 2 Long Body | 2000 | 7 1/4 | 11 | CVD-2-2000-L | |
| 2.5 | 300 | 8 3/16 | 20 | CVD-2.5-300 | |
| 2.5 | 600 | 8 3/16 | 20 | CVD-2.5-600 | |
| 2.5 | 750 | 8 3/16 | 20 | CVD-2.5-750 | |
| 2.5 | 1000 | 8 3/16 | 20 | CVD-2.5-1000 | |
| 2.5 | 1500 | 8 3/16 | 20 | CVD-2.5-1500 | |
| 2.5 | 2000 | 8 3/16 | 20 | CVD-2.5-2000 | |
| 3 | 300 | 8 3/16 | 25 | CVD-3-300 | |
| 3 | 600 | 8 3/16 | 25 | CVD-3-600 | |
| 3 | 750 | 8 3/16 | 25 | CVD-3-750 | |
| 3 | 1000 | 8 3/16 | 25 | CVD-3-1000 | |
| 3 | 1500 | 8 3/16 | 25 | CVD-3-1500 | |
| 3 | 2000 | 8 3/16 | 25 | CVD-3-2000 | |
| 4 | 300 | 9 7/8 | 28 | CVD-4-300 | |
| 4 | 600 | 9 7/8 | 28 | CVD-4-600 | |
| 4 | 1000 | 9 7/8 | 28 | CVD-4-1000 | |
| 4 | 1500 | 9 7/8 | 28 | CVD-4-1500 | |
| 4 | 2000 | 9 7/8 | 28 | CVD-4-2000 | |
