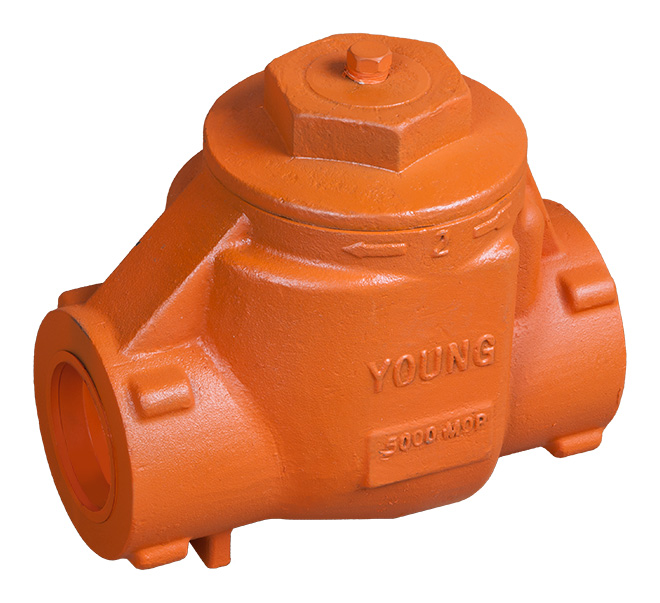

Steel
- Proven designs with years of reliable service
- Very versatile for a variety of applications
- Full-opening design
- 1" through 4" sizes available
| Valve Size (in) | Working Pressure | End to End Length (in) | Weight (lb) | Part Number | |
|---|
| 1 | 275 | 4 1/8 | 4 | CVS-1-275 | |
| 1 | 720 | 4 1/8 | 4 | CVS-1-720 | |
| 1 | 1440 | 4 1/8 | 4 | CVS-1-1440 | |
| 1 | 2160 | 4 1/8 | 4 | CVS-1-2160 | |
| 1 | 3000 | 4 1/8 | 4 | CVS-1-3000 | |
| 2 | 275 | 7 1/4 | 18 | CVS-2-275 | |
| 2 | 720 | 7 1/4 | 18 | CVS-2-720 | |
| 2 | 1440 | 7 1/4 | 18 | CVS-2-1440 | |
| 2 | 2160 | 7 1/4 | 18 | CVS-2-2160 | |
| 2 | 3000 | 7 1/4 | 18 | CVS-2-3000 | |
| 2 | 5000 | 7 1/4 | 28 | CVS-2-5000 | |
| 2.5 | 275 | 8 3/16 | 21 | CVS-2.5-275 | |
| 2.5 | 720 | 8 3/16 | 21 | CVS-2.5-720 | |
| 2.5 | 1440 | 8 3/16 | 21 | CVS-2.5-1440 | |
| 2.5 | 2160 | 8 3/16 | 21 | CVS-2.5-2160 | |
| 2.5 | 3000 | 8 3/16 | 21 | CVS-2.5-3000 | |
| 3 | 275 | 8 3/16 | 26 | CVS-3-275 | |
| 3 | 720 | 8 3/16 | 26 | CVS-3-720 | |
| 3 | 1440 | 8 3/16 | 26 | CVS-3-1440 | |
| 3 | 2160 | 8 3/16 | 26 | CVS-3-2160 | |
| 3 | 3000 | 8 3/16 | 26 | CVS-3-3000 | |
| 3 | 5000 | 8 3/16 | 34 | CVS-3-5000 | |
| 4 | 275 | 9 7/8 | 30 | CVS-4-275 | |
| 4 | 720 | 9 7/8 | 30 | CVS-4-720 | |
| 4 | 1440 | 9 7/8 | 30 | CVS-4-1440 | |
